Solenoid Cartridge Valves Normally Closed SV08-20M Hydraforce Type Solenoid Valve 12 Volt With Manual Control

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Valve type : Directional Control Valve

Pressure : Hydraulic

Structure : Tube

Maximum pressure : 207Bar

Maximum Flow Rate : 30L/min

Material : Carbon Steel

Temperature : -40~120℃

Cavity : VC08-2

Contact Now

Product descriptions from the supplier

Specification

Product Name	Solenoid Cartridge Valves
Model No.	MSV08-20M (Normally Closed)
Operating Pressure	207Bar
Internal Leakage	2 drop/min
Rated Flow	30L/min
Temperature	-40℃~120℃
Cavity	VC08-2

Product Description

Solenoid Cartridge Valves Normally Closed SV08-20M Hydraforce Type Solenoid Valve 12 Volt With Manual Control

Hydraulic Symbol

When de-energized, the valve acts as a check valve ,allowing flow from ① to ②,while blocking flow from ② to ①
When energized, the poppet lifts to open the ② to ① flow path

Features

* Continuous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* Cartridges are voltage interchangeable.
* Unitized, molded coil design.
* Manual override option.
* Industry common cavity.
* Compact size.

Performance

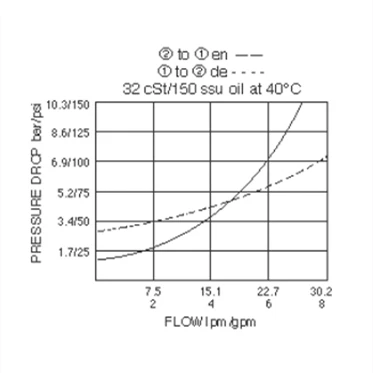

Performance Curve

Pressure Drop & Flow

----------- 1 to 2 (De-energized)

———— 2 to 1 (engerized)

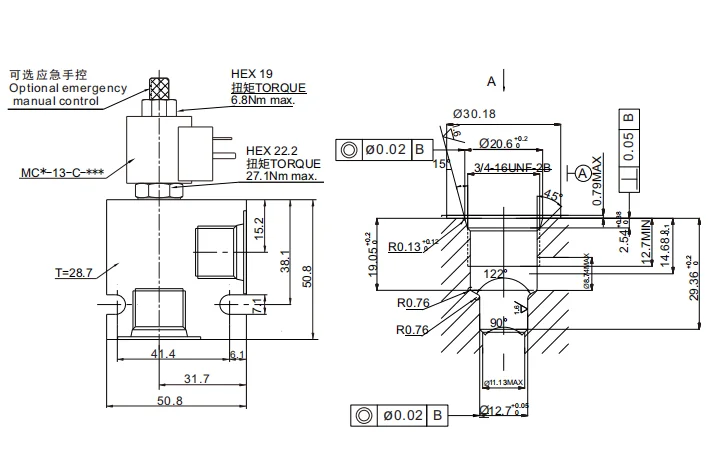

Dimensions

Cavity: VC08-2

Thread size: 3/4-16UNF-2B

Coils: 12V, 24V, 220V

Coils: A variety of coils are available
