Mini POS Series Rod Ends Bearing Metric Rod End Joint Bearings

Brand Name : SFT

Model Number : POS5 POS6

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Connection screw shape : Male thread

Application : electric motors, automotive components

Thread : Male

Ball Material : 52100 Bearing Steel

Sliding contact surfaces : Joint Bearing GAC100S:Steel / PTFE Fabric

Precision Rating : High Precision

Contact Now

Metric rod end joint bearings mini ball joint rod ends bearings POS series rod end bearings

Mini POS Series Rod Ends Bearing Metric Rod End Joint Bearings

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles, for example, feature tie rods with a rod end bearing. Of course, tie rods are designed to connect a vehicle’s steering rack to its steering knuckle. As a result, tie rods must be able to rotate according to the direction in which the wheel is turned. Rod end bearings allow tie rods to perform this rotation in a precise and controlled manner. To learn more about rod end bearings and how they work, keep reading. If you’re looking to purchase Rod Ends, Monroe has you covered.

Rod end bearings are typically made using the following materials:

Steel

Stainless steel

High-carbon steel

Aluminum Male vs Female Rod End Bearing:

What’s the Difference? A rod end bearing can be classified as either male or female depending on the way in which the threading is designed. Male rod end bearings are designed with external threading. In comparison, female rod end bearings are designed with internal threading. With interior threading, female rod end bearings can handle unique applications that aren’t possible with male rod ends bearings. Helicopters, for instance, often use female rod end bearings to adjust the direction of the blade. They allow pilots and aviation technicians to fine tune their blade adjustments.

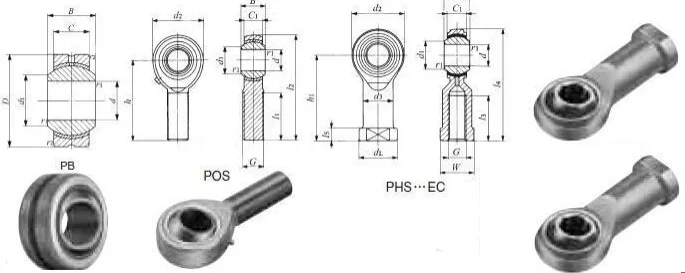

Specification

Name	Part No.	ID	OD	H
POS mini rod end bearing	POS16	16	38	15
POS mini rod end bearing	POS18	18	42	16.5
POS mini rod end bearing	POS20	20	46	18
POS mini rod end bearing	POS22	22	50	20
POS mini rod end bearing	POS25	25	60	22
POS mini rod end bearing	POS28	28	66	25
POS mini rod end bearing	POS30	30	70	25
POS mini rod end bearing	POS3	3	12	4.5
POS mini rod end bearing	POS4	4	14	5.3
POS mini rod end bearing	POS5	5	16	6
POS mini rod end bearing	POS6	6	18	6.75
POS mini rod end bearing	POS8	8	22	9
POS mini rod end bearing	POS10	10	26	10.5
POS mini rod end bearing	POS12	12	30	12
POS mini rod end bearing	POS14	14	34	13.5
POS mini rod end bearing	POS3EC	8	12	4.5
POS mini rod end bearing	POS4EC	8.1	14	5.3
POS mini rod end bearing	POS5EC	12.5	16	6
POS mini rod end bearing	POS6EC	19	18	6.75
POS mini rod end bearing	POS8EC	32	22	9
POS mini rod end bearing	POS10EC	54	26	10.5
POS mini rod end bearing	POS12EC	85	30	-
POS mini rod end bearing	POS14EC	126	34	13.5
POS mini rod end bearing	POS16EC	185	38	15
POS mini rod end bearing	POS18EC	260	42	16.5
POS mini rod end bearing	POS20EC	340	46	18
POS mini rod end bearing	POS22EC	435	50	20

Mini POS Series Rod Ends Bearing Metric Rod End Joint Bearings
